WORMGEAR WINCHES "PW"
The design of "PROLIFT" wormgear winches is based on two important factors: sturdiness and economy. The use of high quality components and robust construction ensures a long life. Wormgear winches are best suited for intermittent use. Where high duty factors are encountered, planetary winches are preferable. Standard wormgear winches are selfbraking, for general hoisting purposes however a brakemotor is recommended.
It is useful to consider a running in period of approx 24hrs by limiting the load to 70% of the maximum line-pull mentioned in this website.
| TYPE | Linepull Kg 1st layer |
Hoisting kg.(380V) | Steel wire (mm) |
Line speed m/min |
Motorpower |
Hoisting kg.(220V) | Drum capacity (m) | Weight Kg |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1st layer | 3rd layer | 380v/50Hz 440v/60Hz Kw S2 |
220v/50Hz Kw S2 |
1st layer | 3rd layer | 1st layer | 3rd layer | full drum | |||||
| W150 | 250 | 200 | 150 | 4 | 6 | 0.55 | 0.37 | 100 | 75 | 4 | 16 | 50 | 20 |
| W300 | 500 | 400 | 300 | 5 | 6 | 1.1 | 0.75 | 200 | 150 | 3 | 13 | 50 | 25 |
| W550 | 950 | 750 | 550 | 6 | 6 | 1.5 | 1.5 | 400 | 300 | 6 | 25 | 70 | 45 |
| W675 | 1200 | 900 | 675 | 7 | 6 | 2.2 | - | - | - | 6 | 26 | 70 | 60 |
| W950 | 1600 | 1300 | 950 | 8 | 7 | 3 | - | - | - | 9 | 36 | 100 | 90 |
| W1200 | 2000 | 1700 | 1200 | 9 | 7 | 4 | - | - | - | 12 | 44 | 145 | 120 |
| W1500 | 2600 | 2000 | 1500 | 10 | 8 | 5.5 | - | - | - | 14 | 52 | 145 | 160 |

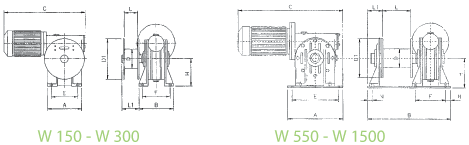

| TYPE PEW/PHW |
DIMENSIONS (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | D1 | E | F | H | L | L1 | |
| W150 | 156 | 141 | 388 | 100 | 180 | 120 | 115 | 115 | 70 | 80 |
| W300 | 180 | 181 | 437 | 100 | 210 | 140 | 147 | 142 | 70 | 89 |
| TYPE PEW/PHW |
DIMENSIONS (mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | D1 | E | F | H | L | L1 | N | |
| W550 | 300 | 460 | 538 | 100 | 210 | 250 | 164 | 150 | 150 | 92 | 27 |
| W675 | 340 | 440 | 604 | 121 | 250 | 290 | 160 | 172 | 150 | 80 | 25 |
| W950 | 380 | 550 | 671 | 146 | 280 | 330 | 190 | 200 | 200 | 100 | 30 |
| W1200 | 450 | 630 | 742 | 159 | 340 | 390 | 220 | 230 | 250 | 100 | 30 |
| W1500 | 480 | 705 | 788 | 172 | 360 | 420 | 240 | 260 | 300 | 105 | 03 |
Illustrations and specifications may be changed without notice and are intended for guidance only. Please consult us for current product details.
